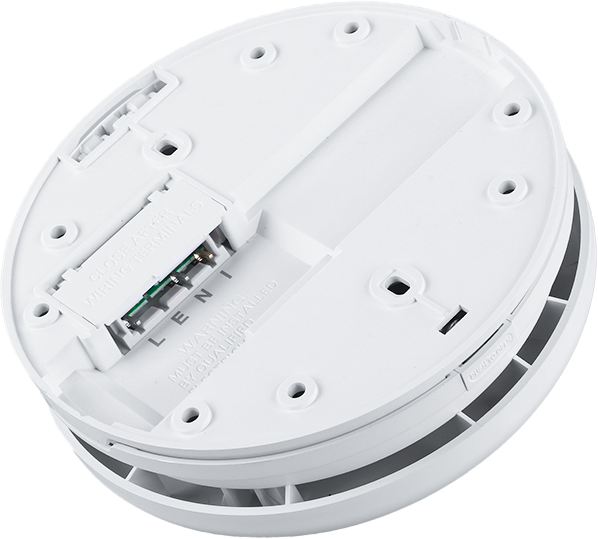

TSS891B-HIR

Product Params

Power Source
AC 220-240V, DC 9Vbattery backup
AC Standby Current
< 100mA
AC Alarm Current
< 100mA
DC Standby Current
< 20uA
DC Alarm Current
< 35mA
Alarm Sensitivity
0.10-0.16dB/m
Comply With Standard
EN14604:2005/AC:2008
Alarm Volume
>85dB(A) @ 3 meters
Low Voltage Threshold
≤7.5V
Hush Time
8minutes
Product Service Life
>10 years
Humidity Range
≤93% RH, Non-condensate
Temperature Range
0℃ to 40℃
Sound Pattern
(BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s - pause 1.5s, with the RED LED flash, repeat this alarm pattern)
Size
140mm in diameter x 44.6mm depth
